Pole Mounted Transformers

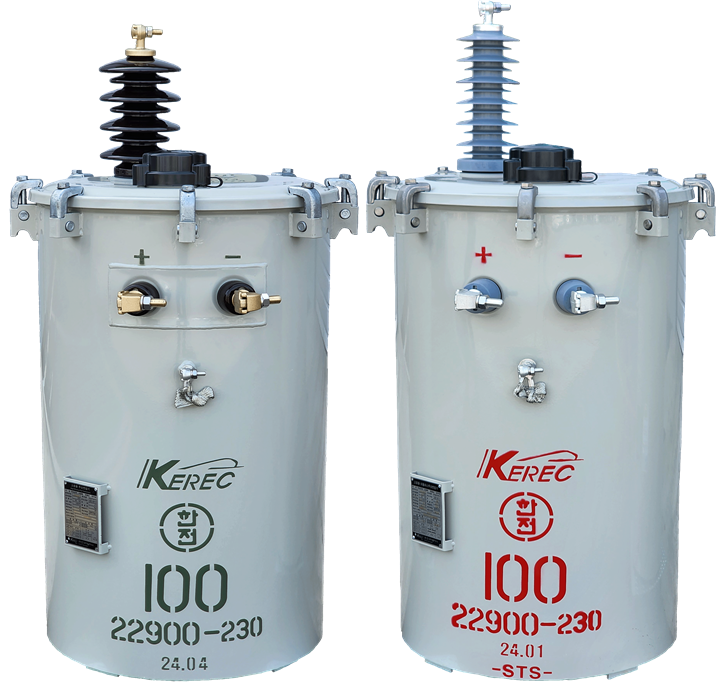

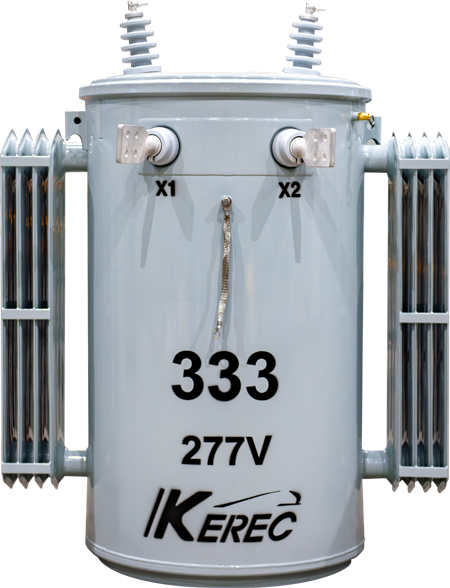

A single-phase pole mounted transformer used in 34.5 kV and below distribution systems that uses an iron core of high permeability oriented silicon steel plates

Excellent features of the product
우수성
High temperature increase limit and slim design, that does not require a radiator, allowing reduced installation area and slim design
An eco-friendly product that applies mineral oil and plant oil for insulation oil
Salt-tolerant products are suitable for salt damage regions and severe pollution regions by applying stainless casing material and preventing bushing damage with the use of complex insulation bushing
Applicable standards
IEC, IEEE, ISO, OECD, KS, ES
Available in various designs that can be customized as per the specific requirements of the customers
Rated specification
Standard
ANSI/IEEE
Number of Phases
Single & Three Phase
Frequency
50Hz / 60Hz
Voltage
Up to 34.5KV
Capacity
10~500kVA
Core material
Amorphous & Silicon steel
Winding material
Copper or Aluminum
Tank Material
Steel / Stainless Steel
Insulating Oil
Mineral Oil or Flame-retardant Oil
Phase Capacity(kVA) Minimum Efficiency(%)
(50% Load) DOE 2016 Compliant
1(Single) 10 98.70
15 98.82
25 98.95
37.5 99.05
50 99.11
75 99.19
100 99.25
167 99.33
250 99.39
333 99.43
500 99.49
3(Three) 15 98.65
30 98.83
45 98.92
75 99.03
112.5 99.11
150 99.16
225 99.23
300 99.27
500 99.35
